Right atrial enlargement

From WikEM
Jump to: navigation, search

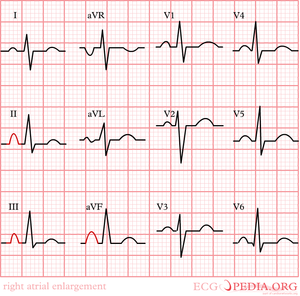

ECG Findings

Error creating thumbnail: File missing
RAE
  • Rarely isolated finding (usually RVH/RAD also)
  • P amplitude >2.5mm in II
  • Large biphasic p wave in V1
  • Right atrial hyper.-initial component is larger in V1 than V6
  • p-mitrale-m notched p wave in leads 1 and 2. Greater than .12 seconds.

Differential Diagnosis

Cardiac Hypertrophy and Enlargement

See Also

References

  • Adapted from Niemann, Lampe, Pani, Donaldson, ECGpedia.org
  • Journal of Electrocardiology. Vol 43 (2010). 40-42.
