Orbital fracture


  • Thin inferior wall frequently injured, requires less energy
  • Medial wall consists of thin lamina papyracea, requires intermediate energy
  • Lateral blow out fractures require higher force


  • Blow-out Fracture
    • Fracture of inferior or medial orbital walls with out fracture of orbital ridge
    • Adipose tissue, inferior rectus or inferior oblique can entrap within maxillary or ethmoid sinus
    • 33% are associated with ocular trauma
  • Non Blow-out Fracture
    • Lateral, inferior, and superior orbital ridge fracture typically occurs with other facial fractures
  • Naso-orbito-ethmoid fracture
    • Associated with force applied to nasal bridge
    • Often accompanied by injury to lacrimal duct, dural tears, and traumatic brain injury

Clinical Features

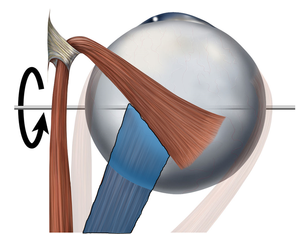

Inferior rectus highlighted in blue. Entrapment of muscle causes upward gaze diplopia.
Orbital fracture with right eye entrapment.

Orbital fracture

  • Enophthalmos (globe herniation)
  • Orbital rim step-off
  • Crepitus
  • Infraorbital anesthesia (damage to infraorbital nerve from orbital floor fracture)
  • Diplopia on upward gaze
    • Entrapment of inf rectus or inf oblique or orbital fat
    • Injury to oculomotor nerve

Naso-orbito-ethmoid fracture

  • Pain with eye movement
  • Traumatic telecanthus
  • Epiphora (tears spilling over lower lid)
  • CSF leak

Findings suggestive of ocular involvement

  • Retrobulbar hematoma or malignant orbital emphysema
    • Exophthalmos, decreasing visual acuity, increased ocular pressure
  • Globe rupture
    • Extrusion of intraocular contents, severe conjunctival hemorrhage, a tear-shaped pupil
  • Orbital fissure syndrome
    • Fracture of orbit involving the sup. orbital fissure
      • May result in injury to oculomotor and ophthalmic divisions of CN V
      • Paralysis of extraocular motions, ptosis, periorbital anesthesia

Differential Diagnosis

Maxillofacial Trauma


Left orbital floor fracture on CT

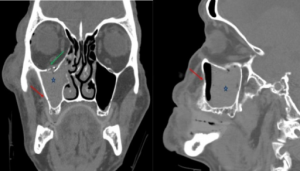

Head CT image with maxillary sinus opacification on coronal (left) and sagittal (right) non-contrast head CT images. Example of a typical fracture involving the right orbital floor (green arrow) and medial maxillary sinus wall (red arrow), which is associated with resultant hemorrhage and an air-fluid level in the right maxillary sinus (blue star).
  • Obtain orbital CT as initial study if significant clinical findings
    • Evidence of fracture on exam
    • Decreased extraocular mobility
    • Decreased visual acuity or diplopia
    • Severe pain
    • Unable to perform adequate exam
  • Look for teardrop sign on coronal view of CT
  • Otherwise can obtain Waters' view first
    • Shows cloudy maxillary sinus representing blood, fluid or tissue
  • Check for associated infraorbital nerve injury


  • Fractures of medial and inferior walls may be considered open fractures into sinus mucosa
    • Cephalexin x5-7 days
    • OR amoxicillin-clavulanate x5-7 days
    • No difference between 5-7 days vs. 10-14 days of treatment[1]
  • Isolated orbital fracture
    • Cephalexin 250-500mg PO QID x10d
    • Decongestants
    • Instructions to avoid nose blowing
  • Ocular injury
    • Emergent ophtho consultation
  • Malignant emphysema and/or retrobulbar hemorrhage
  • Extraocular Muscle Dysfunction
    • May result in oculocardiac reflex → vagal symptoms
    • Consider release of entrapped muscle
  • Decreased extraocular movement not due to entrapment
    • Consider corticosteroids
    • Surgical indications include >2mm enopthalmos and/or persistent diploplia


Isolated orbital fracture

  • Discharge with follow up in 3-10d
  • Refer to ophtho for outpatient full dilated exam to rule-out unidentified retinal tears

Naso-orbito-ethmoid fracture

  • Admit

See Also


  1. Reiss B et al. Antibiotic Prophylaxis in Orbital Fractures. Open Ophthalmol J. 2017; 11: 11–16.
