Left ventricular assist device complications


  • Commonly referred to as an LVAD
  • Developed in 1960s as bridge to cardiac transplant
    • LVAD (left ventricle), RVAD (right ventricle), BiVAD (both venticles via separate pumps)[1]
  • Also used as destination therapy
  • VADs have 3 major variables:
  1. Speed
  2. Flow
  3. Power
  • Other parameters:
  1. Battery level - typically powered by two batteries, with power base unit that can be plugged into wall
  2. Pulsatility index:
    • Decreased index, may indicate low preload or decreased native LV contractility
    • Increased index, may indicate volume overload or increased native LV contractility
    • Pump speed and pulsatility index are inversely related


  • Modern applications have expanded beyond original purpose:
    • Bridge to cardiac transplant
    • Temporizing measure for cardiomyopathies that are expected to resolve
    • Destination therapy for patients who will not undergo cardiac transplant
  • Indication is New York Heart Association class 4 heart failure, ejection fraction <25%, VO2 max less than 15 among other criteria[2]
  • Goal of a VAD is to assist the ventricle and augment cardiac output


  • Pump = Internal pump (usually placed in preperitoneal space), takes blood from a cannula in the apex of the left ventricle and pumps it into the aorta
  • Driveline = Percutaneous cable that exits the abdominal wall, connects pump to external components (controller, battery)
  • Controller = External "box" containing computer for the device that monitors pump performance, has a display screen and controls for settings/alarms/diagnostics, and will display will show pump speed in RPM and pump output in L/min
  • Power Supply = Controller can be connected to batteries for patient mobility, or to a "power base station" that plugs into the wall for home use

Devices Overview

Heartmate I
Heartmate II

HeartMate I or XVE

  1. Use: Destination Therapy
  2. Flow Type: Pulsatile
  3. Backup Method: Hand Pump
  4. Battery: 12volt MiMH - 10hrs
  5. Defib/Cardioversion: Use hand pump during defib/cardioversion

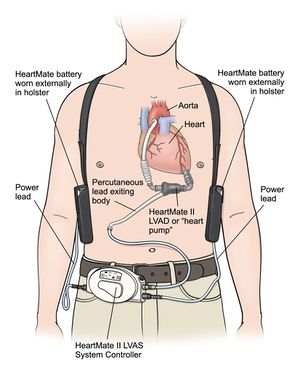

HeartMate II

(Most common type in use today)

  1. Use: Bridge to transplant or destination therapy
  2. Flow type: Continuous
  3. Backup Method: No external method
  4. Battery: 14V Li-Ion - 10 hrs
  5. Defib/Cardioversion: No precautions
  6. Target INR: 1.8 to 2.5

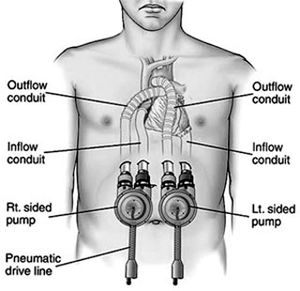

Thoratec VAD (HeartMate III)

  1. Use: Bridge to Transplant
  2. Flow Type: Pulsatile
  3. Backup Method: No external method
  4. Battery: 12V lead acid gel battery - 7.2 Ah - up to 3 hrs
  5. Defib/Cardioversion: No precautions

HeartWare HVAD

  1. Use: Bridge to Transplant
  2. Anatomy: Designed to be implanted completely in pericardial space, no need for pump pocket formation
  3. Flow Type: Centrifugal pump
  4. Target INR: 2.0-3.0

Complications/Differential Diagnosis[3]

  • Bleeding - most common reason for ED visit, most common in first month after implant (frequency 42%[4])
  • Infection - driveline and pocket are most common sites[4]
  • Pump Thrombosis, estimated at 2-13%, average first thrombosis ~1 year after implant depending on device[9]
    • Low output state with falsely elevated pump flow estimates on controller
    • Diagnose with echo or cardiac CTA
    • Treatment with heparin and antiplatelet therapy
    • Consider tPA in life-threatening situations
    • Causes:
      • Mechanical - post-surgical ventricular debris, cardiac emboli, inflow cannula malposition
      • Inadequate anticoagulation and/or antiplatelet treatment
        • As optimal dosing and monitoring not well defined due to lack of clinical trials
        • Will occur despite rigid regimen and compliance of anticoagulation/antiplatelet
      • Prosthetic material inflammatory reaction with blood
      • Intrinsic endothelial activation in response to continuous flow-VAD
  • Arrhythmia - very common
    • Get labs to evaluate electrolytes and troponin
    • Treat atrial fibrillation as in any other patient
    • Treat ventricular arrhythmias with volume replacement and pharmacological or electrical cardioversion
      • Place pads anterior/posterior if going to cardiovert/defibrillate
  • "Suction event"
    • Pump pulls from an LV that hasn't filled
    • Causes:
      • Cannula malposition
      • Increased peripheral vascular resistance (hypertensive emergency)
      • Tamponade


  • Assess perfusion and general state (mental status, skin temp/color, capillary refill, etc)
    • LVADs are preload dependant - if symptoms of hypoperfusion, give fluid blous
  • HR measured via ECG or auscultation (may be difficult secondary to pump noise). A hum or whir should be present to indicate the pump is functioning.
  • Get 12-lead ECG on all LVAD patients
    • Demonstrates primary cardiac disease[10]
    • Generally, VAD does not influence underlying cardiac rhythm
  • Imaging:
    • Bedside echo if able, formal echo if available, with the following suggestive of thrombosis:
      • Cannula flow velocity > 2 m/s
      • More frequent opening of aortic valve than at baseline
      • Increasing LV internal dimension in diastole without manual speed changes
    • CT with contrast to look for thrombus, discuss with radiologist to protocol
  • Blood pressure measured with manual BP cuff and Doppler ultrasound - MAP is identified when constant flow is heard
  • Basic lab should be obtained on all LVAD patients
  • Cardiac labs - BNP, troponin
  • Include thrombolysis, coagulopathy labs
    • CBC
    • CMP, indirect bilirubin
    • PT/INT/PTT
    • LDH
    • Haptoglobin
    • Fibrinogen
    • UA for hematuria
    • Quantitative plasma free hemoglobin
    • Consider TEG
  • LDH elevation over 1,150 IU/L suggestive of pump thrombosis[12]
    • Approximate sensitivity of ~80% and specificity of 90%
    • Hemolysis within thrombosed pump releases LDH
  • Assess LVAD status
    • Auscultate for pump noise
    • Device parameters (found on controller)
      • Pump speed - varies by device - 2,000-10,000 RPM
      • Power - normal 4-6 Watts
      • Flow - normal 4-6 L/min
      • Pulsatility Index (PI) - normal 1-10
        • Measures magnitude of pulsatile flow provided by native cardiac contractions
        • Higher PI = less LVAD support
    • Clinical status more important than LVAD parameters
    • If hypotension, consider VAD flows
      • Low VAD flow
        • Low JVP - bleeding, hypovolemia
        • High JVP - RV dysfunction, inadequate unloading, PE, PTX, tamponade
      • High VAD flows - vasodilatation (sepsis, vasoactive medications)


  • Immediately contact hospital or patient's LVAD coordinator to help coordinate care
  • Check controller to ensure power light is on
    • Ensure humming sound of pump is auscultated over chest/abdomen
    • If pump not working, replace with patient's backup controller
    • Check all connections to power source, driveline, and controller are intact
    • Disconnect all connections after checking, and reconnect immediately
    • Inspect driveline for damages/defects
  • Assess battery, replace with backup battery
    • Patient should be positioned flat on stretcher before replacing battery
    • OR connect to hospital's power base unit or patient's power base unit if available
    • IF NONE OF ABOVE, contact VAD coordinator to find local LVAD patient in vicinity willing to transport extra batteries to ED
    • Take note that if battery is critically low, many devices will automatically lower speed, which can cause syncope or lightheadedness
  • Hemodynamic, supportive care[13]
    • Many LVAD patients fluid restrict too much due to their history, and LVADs are preload dependent
    • IVF crystalloid fluid bolus when indicated (low-flow indicator alarm)
    • MAP goal 70-90 mmHg
  • LVAD patients afterload sensitive
    • Address high BP emergently if thought to contribute to increased work of pump, which leads to thrombus and stroke
    • Beware of suction event complication, which requires IVF bolus and allowing the controller to sense this, slow pump speed and slowly bring up to fixed speed to allow for adequate ventricular filling
  • Take special care to not twist, bend, cut, or otherwise damage the driveline
  • First generation LVADs had pulsatile flow
    • Subsequent designs use continuous flow - patient will not have a palpable pulse
  • Patient will be on anticoagulation and antiplatelet therapy secondary to high risk of pump thrombus, CVA, and other thromboembolic events
  • VADs are ECG independant, unlike ICD (many patients with a VAD will also have an ICD in place)
    • ICD discharges are common, and frequently inappropriate (possibly secondary to LVAD interference)[10]
  • Ensure that patient or family bring in any additional batteries and charging elements as these will not be available in most hospital settings
  • Thrombosis, tPA in emergencies
    • Breadth of literature supporting is overall small
    • When patient not responding to continuous anticoagulation (heparin, argatroban drip)
    • AND when going directly to LVAD exchange or catheter-directed thrombolysis are not possibilities
    • Consider tPA if not contraindicated for survival and avoidance of needing LVAD exhange[14]
      • 5 mg IV bolus tPA
      • 3 mg/hr infusion in NS for 10 hours
      • 1 mg/hr for up to 48 hours, never exceeding 100 mg max total dosage
      • In single center study cited above, there was:
        • 70% that had hemolysis resolve and no need for LVAD exchange at 30 days
        • 95% survival at 30 days
        • 10% hemorrhagic stroke with no difference between tPA and control group
    • Alternative dosing, while plus/minus continuing heparin drip[15]
      • Initial dosing of 10 mg IV bolus
      • Followed by 1 mg/min for 20 min
      • Then 1 mg/hr for 24 hours
      • Monitor LDH levels and discontinue heparin drip when LDH acceptably lowered

Cardiac Arrest[3]

  • Unconscious, apneic, no evidence of LVAD function (auscultate for mechanical noise)
  • Immediately evaluate LVAD components and attach to reliable power source
    • Some first-generation LVADs have external hand pumps that can be used to provide circulation
  • Begin CPR if patient is unresponsive with MAP less than 50mmHg, end tidal carbon dioxide level less than 20mmHg, or LVAD cannot be restarted.[16]
    • Unstable patients with shockable dysrhythmias should be cardioverted.[17]
      • Optimal placement of pads is in the anterior-posterior fashion & not over the drive line.
    • Patient can be intubated, given IV fluids and ACLS drugs, etc
  • New Paradigm shift with since AHA officially endorsed the use of chest compressions in 6/2017.[18]
    • Some studies available[19][20] indicate that CPR may not be as harmful as previously thought, or that abdominal compressions are an alternative[21] but further investigation needed


  • Immediately contact the patient's VAD coordinator
  • Almost all LVAD patient presenting to the ED will require admission or transfer to a site of expertise
