Diabetic ketoacidosis

(Redirected from Diabetic Ketoacidosis)

This page is for adult patients. For pediatric patients, see: diabetic ketoacidosis (peds)

Background

  • Patients in DKA are almost always K+ depleted despite initially fairly normal K+.
    • This is due to extracellular shift of K+ due to acidosis as well as insulin infusion, which increases uptake of K+ intracellularly.

Epidemiology

  • Mortality rate approximately 2-5%[1]

Pathophysiology

Defining features include hyperglycemia (glucose > 200mg/dl), acidosis (pH < 7.3), and ketonemia

Hyperglycemia

  • Leads to osmotic diuresis and depletion of electrolytes including sodium, potassium, magnesium, calcium and phosphorus.
  • Further dehydration impairs glomerular filtration rate (GFR) and contributes to acute renal failure
  • Hypokalemia may inhibit insulin release

Acidosis

  • Due to insulin deficiency -> lipolysis / accumulation of of ketoacids (represented by increased anion gap)
  • Compensatory respiratory alkalosis (i.e. tachypnea and hyperpnea - Kussmaul breathing)
  • Breakdown of adipose creates first acetoacetate leading to conversion to beta-hydroxybutyrate

Dehydration

  • Causes activation of RAAS in addition to the osmotic diuresis
  • The initial serum values for electrolytes such as K+ may be higher than actual body stores
  • Cation loss (in exchange for chloride) worsens metabolic acidosis

Clinical Features

  • May be the initial presenting of an unrecognized T1DM patient
  • OR symptoms/signs of inciting precipitant (e.g. history of med/dietary nonadherence, signs/symptoms of infection)
  • Presenting features may include:

Differential Diagnosis

Causes of DKA

Hyperglycemia

Evaluation

Workup

Workup to confirm diagnosis and search for possible inciting causes (e.g. infection, ACS)

Diagnosis

Diagnosis is made based on the presence of acidosis (e.g. venous pH < 7.3 or HCO3 <18) and ketonemia (e.g. >3mmol/L BOH or ketonuria) in the setting of diabetes (e.g. glucose >200mg/dl) [2]

Basic Laboratory Findings

  • Blood Glucose
    • Capillary blood sugar >200mg/dL
    • Blood sugar may not be very elevated if there is impaired gluconeogenesis (eg liver failure, severe alcoholism) or patient is taking a SGLT-2 Inhibitor [3]
  • Elevated Anion Gap
    • Bicarb may be normal due to compensatory and contraction alkalosis so the elevated anion gap or ketonuria may be the only clues to the DKA
  • Serum ketones
    • Beta hydroxybutyrate will be elevated

Blood Gas

No need to perform Arterial blood gas. Venous blood gas is sufficient[4]

  • Difference in pH from VBG vs ABG will be ±0.02pH units[5][6] [7][8]

Urinary analysis (ketonuria)

  • Urinalysis may be a useful screening test early in DKA, if serum ketones not available
    • However, may give a false negative for ketones later in DKA, as acetoacetate is converted to beta-hydroxybutyrate the urinary ketones may turn negative[9]

End Tidal CO2

Strongly consider capnography for respiratory distress[10]

  • ETCO2 can be used for bedside assessment of DKA in pts with glucose>550[11]
    • An ETCO2 of ≥35 is 100% sensitive to rule out DKA
    • An ETCO2 of ≤21 is 100% specific to diagnosis DKA

Management

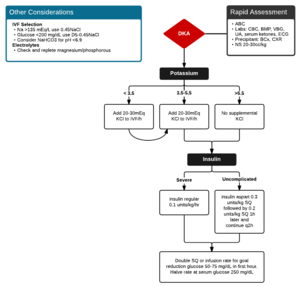

Algorithm for the management of diabetic ketoacidosis
  • If the patient has an insulin pump, make sure it is shut off or disconnected

Volume Repletion

  • Administer 20-30cc/kg lactated ringers bolus during the first hour
    • Most important step in treatment since osmotic diuresis is the major driving force[7]
    • Most adult patients are 3-6L depleted
    • Increased systemic perfusion may transport insulin to previously unreached receptor sites, inhibiting ketogenesis
    • Increased renal perfusion promotes renal hydrogen ion loss
    • Use of LRs is preferred over NS [12],[13]
    • When blood sugar(BS) < 250-300 add a D10 infusion at an equal rate to the LR using a single IV line [14]
    • Patients can eat and drink if mental status is intact [15]

Electrolyte Repletion

  • Potassium (most important!)[16]
    • <3.5mEq/L:
      • Start potassium repleation: 20-30 mEq KCl to IVF/hr
      • Do not administer insulin (to avoid worsening of hypokalemia)
    • >3.5mEq/L and <5.5 mEq/L:
      • Start potassium repleation: 20-30 mEq KCl to IVF/hr
      • May start insulin (see below)
    • >5.5 mEq/L:
      • Hold potassium repletion and recheck electroltyes after initiaton of insulin (see below)
  • Sodium
    • Hyponatremia
      • Correct for hyperglycemia
        • Na+ decreases by 1.6mEq/L for every 100mg/dL increase in glucose (ie pseudohyponatremia)
      • If truly hyponatraemic, start NS 250-500ml/hr
    • Hypernatremia
      • Consider Lactated Ringers
  • Hypophosphatemia
    • <1.0 mEq/L, start repletion:
      • IV K2PO4 at 1mL/hour (contains 4.4meqK+ & 93mg phos)
      • Severe hypophosphatemia can cause cardiac and respiratory dysfunction
  • Hypomagnesemia
    • Mg<2.0mg/DL, start repletion:
      • 2g MgSO4 IV over 1h

Insulin Overview

  • Check potassium prior to insulin treatment (see above)! Do not administer insulin until potassium supplementation is underway.[17]
  • A bolus dose is unnecessary and may contribute to increased hypoglycemic episodes[18]
  • If the patient comes in wearing an insulin pump, turn off the pump and remove the subcutaneous catheter.
  • Expect BS to fall by 50-100mg/dL per hr if you administer 0.1units/kg/hr of insulin
  • Refractory hyperglycemia may be due to an associated infectious process contributing to the DKA

Long-Acting (Basal) Insulin

  • Two main practices exist: 1) Close the anion gap, then start basal insulin 2-3 hours before stopping insulin infusion, 2) Early basal insulin
    • Potential benefits of early basal insulin (glargine or detemir) include protecting against erroneously stopping insulin infusion prematurely and eliminating the 2-3 hour waiting period of starting basal insulin while on IV infusion
  • Early basal insulin:[19]
    • Glargine 0.30 U/kg SQ x 1[20][21], OR
    • Determine total 24 hour home dose of basal insulin and deliver that q24 hours (e.g. patient's normal home dose of glargine)[22]

Short-Acting Insulin

Intravenous Regimen (Short-Acting)

Do not stop insulin infusion until AG normalized AND bicarb normalized, despite resolution of blood sugar. Aim of insulin regime is to correct the acidosis, not merely the hyperglycemia.

  • Initial infusion 0.1 to 0.14 units/kg/hr of insulin (or 0.05units/kg/hr per local protocol)
    • Fixed Rate Insulin Infusion has improved outcomes over Variable Rate [23][24]
  • Maintain BS between 150 and 200mg/dL until resolution of acidosis
    • May require IV fluids to be switched to Dextrose 10% when BS <150mg/dL
  • Continue IV infusion for 2 hrs after subcutaneous insulin is begun
  • Subcutaneous route (appropriate only for mild DKA and if able to eat and void urine; poor perfusion may hamper its absorption)

Subcutaneous Regimen (Short-Acting)

A subcutaneous (SC) regimen must use short acting insulin and follow either a 1hr or 2hr dosing protocol. Regular insulin is not effective.[25] For patients who are euglycemic (glucose <250 mg/dl) at presentation (e.g. with mild gap), using standard insulin sliding scale instead of this regimen.[26] [27]

1hr Protocol

  • Initial dose SC short acting insulin (e.g. Aspart): 0.3 units/kg ideal body weight, followed by
    • 0.1 units/kg SC every hour
    • When blood glucose <250mg/dl (13.8 mmol/l), change IV fluids to D5<sub 0.45%NS and reduce SC aspart insulin to 0.05 units/kg/hr
    • Keep glucose at 150mg/dl (11 mmol/l) until resolution of DKA.

2hr Protocol

  • Initial dose SC short acting insulin (e.g. Aspart): 0.3 units/kg ideal body weight, followed by
    • 0.2 units/kg SC 1 hour later followed by Q2hr dosing
    • When blood glucose <250mg/dl (13.8 mmol/l), change IV fluids to D5 0.45% saline and reduce SC insulin to 0.1 units/kg/ 2hr
    • Keep glucose at 150mg/dl (11 mmol/l) until resolution of DKA.

Bicarbonate[28]

  • No evidence supports the use of sodium bicarb in DKA, with a pH >6.9
  • However, no studies have been performed for patients with pH <6.9 and the most recent ADA guidelines recommend it for patients with pH <7.1
  • Pitfalls of sodium bicarbonate therapy in DKA (outside of last ditch efforts in severe acidemia)[29]
    • Paradoxical CSF acidosis
    • Hypokalemia from H+ and K+ shifts
    • Large sodium bolus
    • Cerebral edema
    • Shifts oxygen-hemoglobin dissociation curve to left, decreasing O2 delivery to tissues

Subsequent Management

Labs/Monitoring

  • Glucose check Q1hr
  • Chem 10 Q2r (then move to Q4hr)
  • Check pH PRN based on clinical status (eval respiratory compensation)
  • Check appropriateness of insulin dose Q1hr (see below)
  • Corrected Electrolytes

Sliding Scale

  • Insulin Sliding Scale to be started once patient's DKA has resolved and eating a full diet.

Intubation

  • Avoid intubation unless patient cannot generate respiratory alkalosis compensation due to extreme fatigue[30]
  • Risks associated with intubation in DKA:
    • During sedation/paralysis, a rise in PaCO2 can decrease pH considerably
    • Severe gastroparesis in DKA creates a significant risk for aspiration
    • Strong DKA patients generally can achieve greater hyperventilation than mechanical ventilated patients
  • See Intubation for more information

Disposition

  • Admit to higher level care (usually ICU or step-down unit initially)
  • Subsequent hospital discharge requires closing on anion gap and resolution of symptoms.
  • Patients with mild DKA may be treated as outpatients if reliable, close follow-up available and underlying causes not requiring admission

Complications
